ACCU-CAM 500 Microscope Camera

ACCU-CAM 500 Microscope Camera from ACCU-SCOPE


  • 5.0 Megapixel
  • Video and Photos
  • Replaces the eyepiece on most microscopes


Designed to replace the 23mm eyepiece on your microscope (or 30mm with adapter), this camera feeds a digital image to your Windows based computer, allowing you to capture still and motion pictures.

Load the included software on your computer, plug in the USB cable (included), and you are all set.

The feature-rich Windows AccuView software allows image analysis, annotation, measurement, white balance & more.

Customers with Mac computers can use the included ACCU-View LITE (for PC and Mac) for a streamlined operating experience (e.g., fewer features, simple interface). The camera will also work with the Mac "Photo Booth" software. (Features would be limited to Photo Booth features.)

What's in the box:

  • ACCU-CAM 500 eyepiece camera
  • USB 2.0 mini cable
  • AccuView software CD (Windows 7 and up (32 and 64-bit); Mac OS 10.6 and up)


  • 5.0 MP CMOS eyepiece camera
  • 1/2.8" SONY IMX335 color camera sensor
  • 2592 x 1944 Pixel Resolution
  • Video Frame Rate 26fps @ 2592x1944, 26fps @ 1280x960, 26fps @ 640x480
  • USB 2.0 direct connect to your PC
  • Excellent color reproduction
  • Fits into a 23.2mm I.D. eye tube or photo tube, an optional adapter is available for 30mm eyetubes.

Why not start documenting your microscopic adventures today?

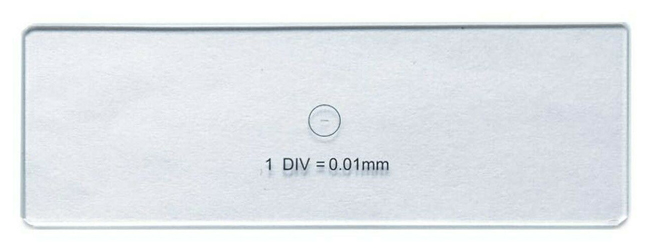

Stage Micrometer

Stage Micrometer

Use this microscopic scale to calibrate your camera software, or use it directly to make measurements through the lens.

Standard 1"x3" microscope slide size, features a scale with divisions of 1/100th of a millimeter.
