BioVID HD & 4K Microscope Cameras

BioVID Microscope Camera

Overview

When you need the highest quality images - it's the BioVid!

  • Connects to HD/4K Monitors with HDMI Cable
  • Connects to Windows or Mac Computers with USB Cable
  • Record LIVE to SD Card
  • Designed for C-mount Trinocular Microscopes, but will work in an eyetube with optional adapter(s)

Details

The BioVID HD 1080+ microscope camera does it all!

Just connect the camera to any trinocular microscope via C-mount threading, then plug the HDMI cable into any large screen HDTV for amazing resolution and fast-action video (60fps).

You can also use the included USB cable and advanced imaging software to save and edit images and videos on your computer.

Additionally, you can save images and videos to the included SD card for portability and future use.

The BioVID HD 1080+ has 1920x1080 resolution, increased sensitivity, low-noise, and great color rendition. You'll create stunning, high-resolution images with smooth live-image display with the BioVid HD 1080+.

Whether in a large lecture hall, a classroom, laboratory, or clinic, the BioVID HD 1080+ will ensure clients and students see microscope images clearly.

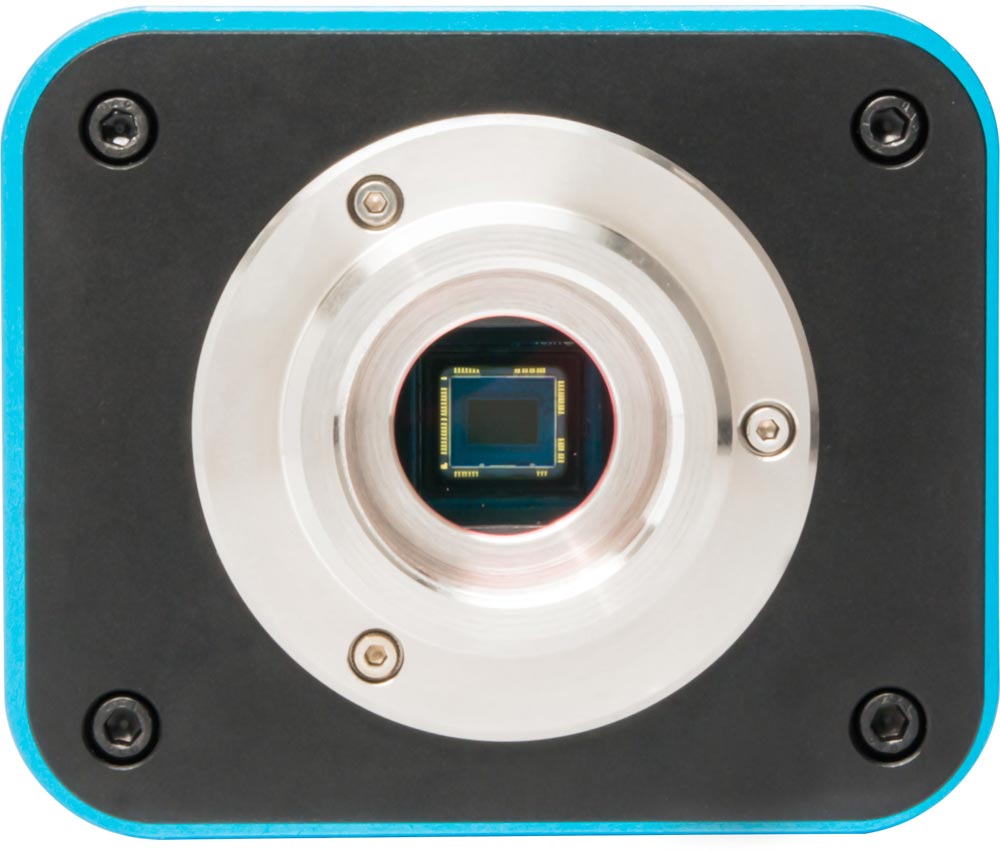

Image Sensor

1 / 2.8” (5.5x3.4mm) Sony IMX236(C) CMOS color

Pixel size: 2.8um x 2.8um

Auto-Exposure: 0.1ms-999ms


Resolution

1920x1080


Video Output

HDMI:

  • User Interface: USB Mouse (included)
  • Image/Video Capture: SD Card
  • Video: 60 frames per second @ 1920x1080 (HDMI)
  • On screen-Camera Control Panel and Toolbar

USB:

  • Includes software for capturing, rotating, measuring, etc.
  • Image/Video capture into PC
  • Image capture into MAC
  • Video: 30 frames per second @ 1920x1080 (USB)
  • White Balance and Standard Color Controls

Power

cUL / CE approved power adapter

AC Input: 100-240Vac 50/60Hz, 0.31A (Auto-switching power adapter)

DC Output: 12V, 1.0 amp


Operating Conditions

Temperature: 14 to 122 degrees F

Humidity: 30-80%RH


Requirements

Operating System:

  • Microsoft Windows 10/80/7/XP/Vista
  • Mac OSX
  • Linux

CPU: Intel Core2 2.5 or higher

Memory: > 4GB

USB 2.0 High-speed port

CD-ROM


Mounting Requirements

Standard trinocular c-mount (threaded) or eyetube (optional adapter required).

What Adapters/Sleeves do I need?

If your microscope is trinocular with a c-mount (a male threaded mount about an inch across), you do not need any optional adapters or sleeves.

If you will be mounting the camera in an eyetube, you must order the eyepiece adapter. The adapter is for 23mm eyetubes. If your eyetube is larger, an optional sleeve would be required.

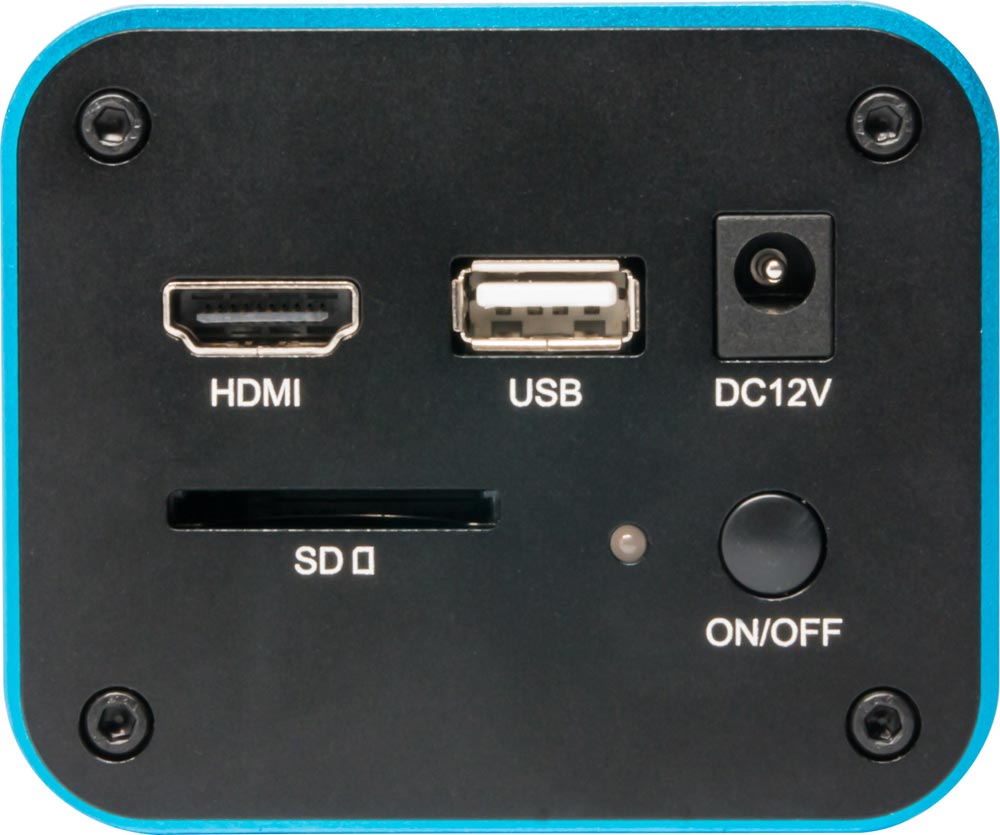

Connections & Controls

USB Port: USB computer cable or USB mouse

HDMI Port: HDMI cable to TV

DC 12v Jack: 12v DC power in

SD Slot: for included SD card

ON/OFF: power button

LED Light: Red=off; Blue=on


Weight and Dimensions

  • Height: 3.6” (92mm)
  • Length: 2.8” (70mm)
  • Width: 3.1” (78mm)
  • Weight: 1.03lbs. (0.47kg)
