EXAMET-5 Inverted Metallurgical Microscope

EXAMET-5 Metallurgical Microscope from UNITRON


The EXAMET-5 is an industrial metallurgical microscope designed for brightfield, material science applications, metal manufacturing, metallurgy, fabrics/textiles, wafers, optoelectronics, composites and microelectronics.

The advanced Semi-Apo LWD M Infinity Plan Optics, ergonomic design, and digital capabilities make the EXAMET-5 Series an outstanding and cost effective choice for today’s modern metallurgist. The EXAMET-5 Series is available with either reflected illumination or with reflected and transmitted illumination.

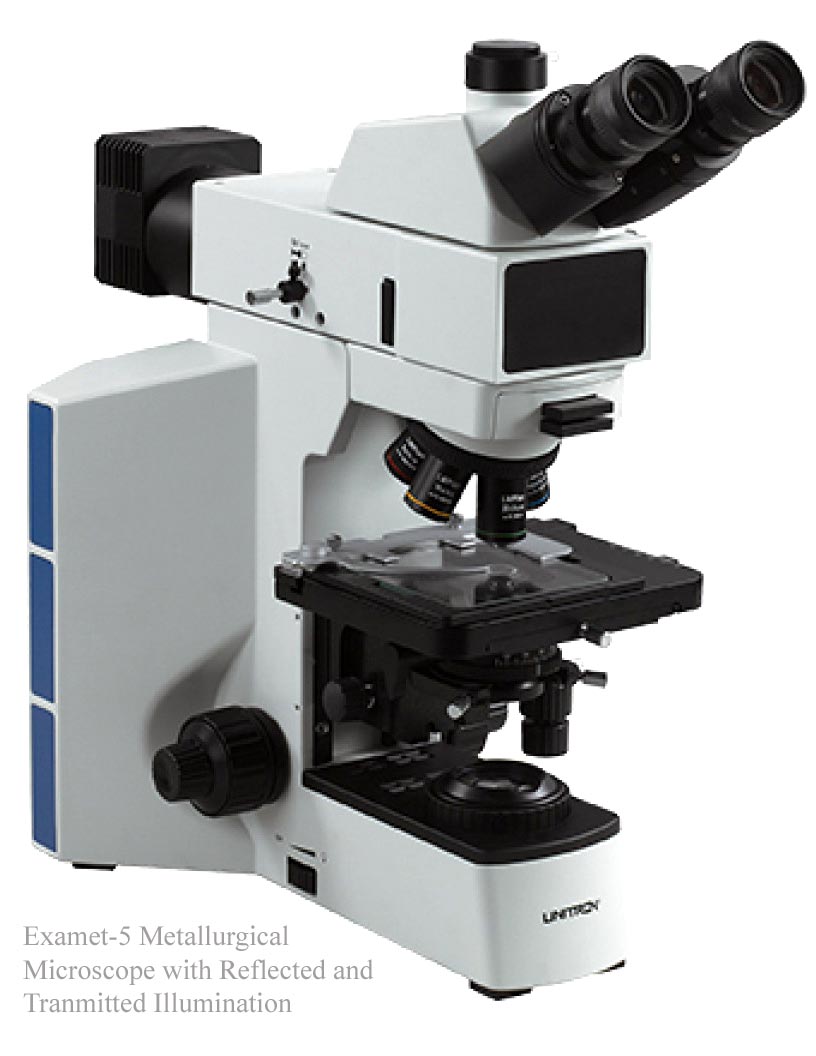

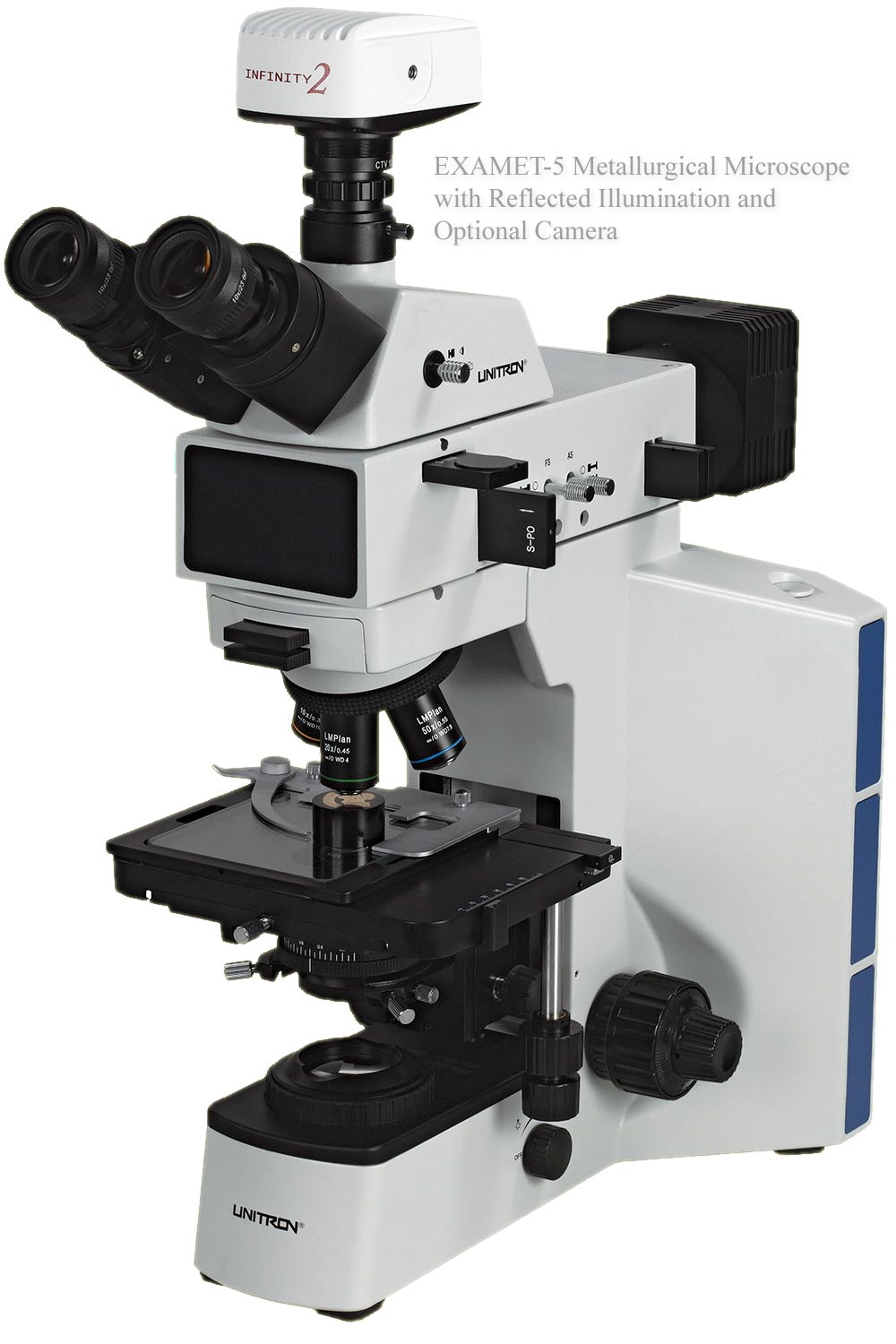

Choice of models, Reflected (Model 14350), or Reflected & Transmitted (Model 14351)


EXAMET-5 Inverted Metallurgical Microscope from Unitron

Trinocular viewing head:

  • Inclined 30°
  • Viewing split: 100% binocular, or 50% binocular / 50% trinocular

Widefield 10x eyepieces with a 23mm field of view

  • Infinity LWD M Plan Achromat 5x, 10x, 20x
  • Infinity LWD M Plan semi-Apo 50x

Reversed quintuple nosepiece

Interpupillary distance adjustment 54mm – 75mm

Mechanical Stage (175mm x 145mm), 76mm (X) x 42mm (Y) movement range

Low position coaxial focusing system with tension adjustment

Observation height of up to 50mm

5-watt variable LED reflected illuminator with field and aperture diaphragm

5-watt LED transmitted illuminator with field diaphragm (Model 14351 only)

Universal power supply (90v-240v)

Shipping weight 40lbs.

Ordering Information

Online Ordering

Click HERE for online ordering.

Phone, Fax, Purchase Order, & Mail Ordering

Click HERE for other than online ordering.

Shipping Rates

Rates in the Continental USA will be shown in your shopping cart. Costs are higher to Alaska, Hawaii, and locations outside the USA. Email us your shipping address and equipment list for rates outside the lower 48.

Quantity Pricing is available.
