3000-LED Microscope

Lab Microscope with Infinity Plan Optics

ACCU-SCOPE 3000-LED Binocular Medical Microscope

Overview

Superb Optics, Durable, & High Performance

The ACCU-SCOPE® 3000-LED Microscope Series delivers outstanding optical performance, value and resolution to meet the exacting standards of life science professionals and students. With a newly designed Infinity plan optical system, a best in class 20mm field of view and a super-bright 3 watt LED illuminator, the 3000-LED Series provides high contrast images with outstanding resolution, precision design and enhanced illumination.

Ease of Viewing

Newly designed plan achromat focusable eyepieces, with a large 20mm field of view allow users to see more quickly.

Optical Excellence

ACCU-SCOPE's new Infinity plan objectives provide users with high resolution, high contrast objectives at an affordable price. Objectives are available in plan achromat and plan phase configurations.

Illumination

A super, bright white LED light provides over 15 years of illumination saving time, energy and the cost of replacement bulbs.

Details

Models Available

Featuring 4x - 10x - 40xr - 100xr Infinity Plan Achromatic Objectives:

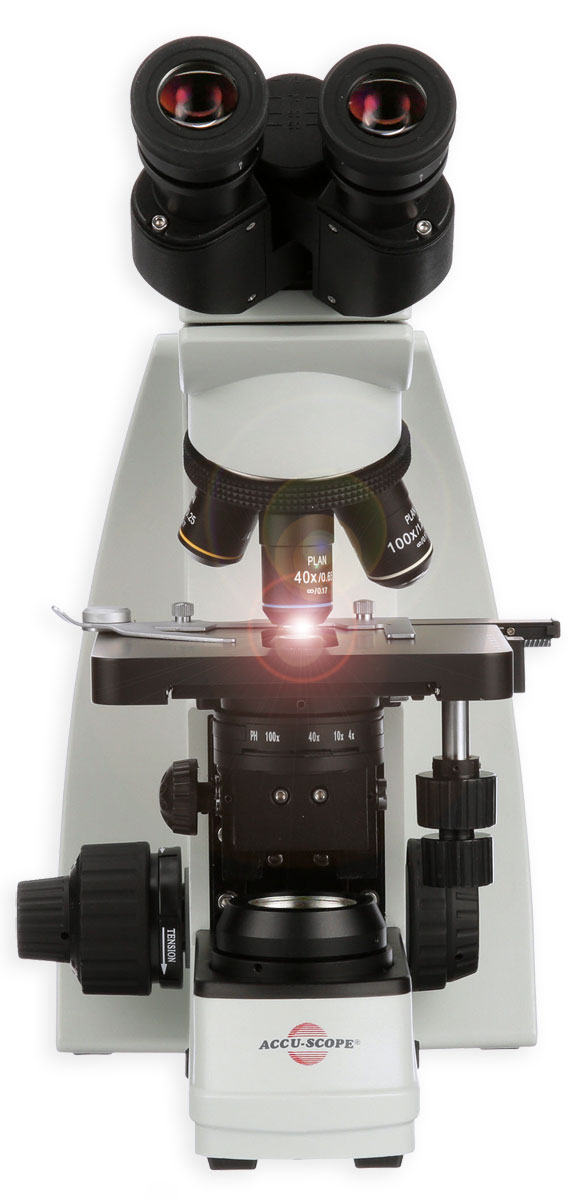

  • Binocular Plan achromatic - 3000-LED

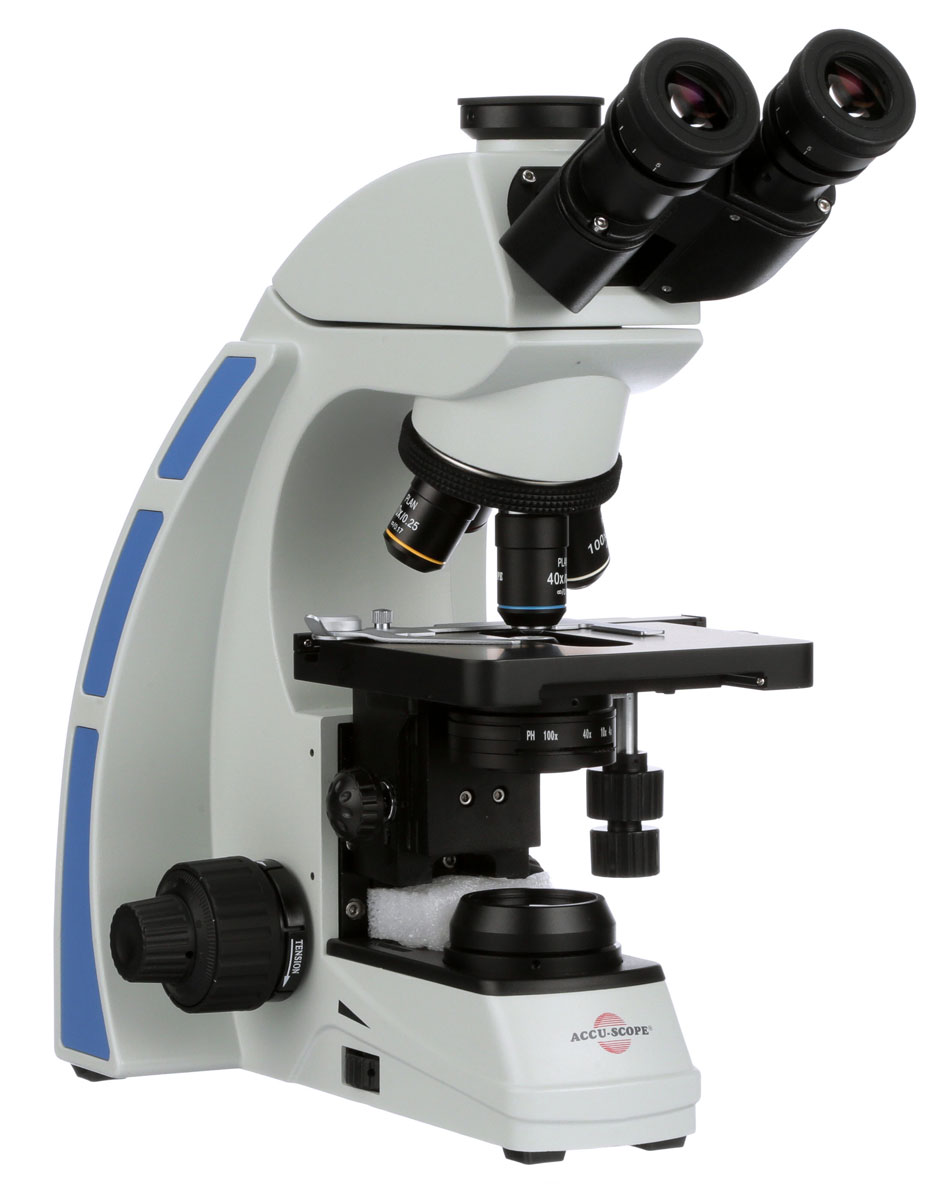

  • Trinocular Plan achromatic - 3001-LED

Featuring 10x - 40xr Phase Infinity Plan Achromatic Objectives and Condenser Slider:
  • Binocular Phase Contrast - 3000-LED-SPH
  • Trinocular Phase Contrast - 3001-LED-SPH
Note that there are no 4x or 100x objectives on the Phase Contrast models.

Upgrades Available

  • Phase Contrast
  • Field Iris for Koehler-type Illumination
  • No 100xr Objective on non-phase contrast models for cost savings

Optical System

  • Infinity Optical System, f=180mm
  • Anti-Mold

Viewing Head

  • Siedentopf type, inclined 30°
  • Interpupillary distance adjustment 48-75mm
  • 360° rotatable

Eyepieces

  • HWF Plan 10x eyepiece
  • 20mm field of view with built-in diopter adjustment
  • A pointer is standard in one eyepiece
  • Eyepieces are locked-in to prevent tampering

Nosepiece

  • Rear facing quadruple, ball bearing nosepiece
  • Positive click stops that ensure parcentration

Infinity Plan achromat Objectives

  • 4x (N.A. 0.10)
  • 10x (N.A. 0.25)
  • 40xr (N.A. 0.65)
  • 100xr oil (N.A. 1.25)

40xr and 100xr are spring-loaded.

The Phase Contrast models only have 10x and 40xr objectives.


Stage

  • Stage size 140mm X 132mm
  • X-Y movement range of 76mm X 50 mm

Condenser

  • N.A. 1.25 Abbe condenser (with slot for sliders) on a rack and pinion
  • Iris diaphragm
  • Glass lens in condensing system protects iris diaphragm from damage or tampering

Focusing System

  • Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides
  • All metal gears

Illumination

  • 3 watt LED with variable intensity control
  • Bulb is rated for over 25,000 hours of continuous use

Accessories Included

  • Dust cover
  • Immersion oil
  • Instruction manual
  • Universal power supply 110v-240v

Stand

  • Cast alloy aluminum
  • Coaxial coarse and fine focusing controls.

Measurements

  • Weight: 16lbs.
  • Dimensions (LWH): 15.25" x 7.7" x 15.4"

Certifications

  • ISO 9001
  • ISO 14001

Warranty

  • 5 year limited warranty for parts, labor and electronic components
  • 1 year warranty on LED bulb

Ordering Information

Online Ordering

Click HERE for online ordering.

Phone, Fax, Purchase Order, & Mail Ordering

Click HERE for other than online ordering.

Shipping Rates

Rates in the Continental USA will be shown in your shopping cart. Costs are higher to Alaska, Hawaii, and locations outside the USA. Email us your shipping address and equipment list for rates outside the lower 48.

Quantity Pricing is available.
