i4 Infinity Lab Microscope
Overview
Check out this value priced infinity optics laboratory microscope:
- Reverse quadruple nosepiece
- Inifinity Semi-Plan Objectives: 4x 10x 40x 100x (Full Plan objectives an option)
- 10x/18mm widefield eyepieces (High Point an option)
- Siedentopf Binocular head, Trinocular available (for adding a camera)
- Built-in Mechanical Stage
- LED daylight long-life bulb
- Variable light adjustment
- Anti-Fungal Coating on all lenses
- 90-240V / 50-60Hz automatic-switching power input
- LIFETIME warranty on Optical and Mechanical components
Details
The i4 modular series microscope features exceptional optical quality and expandability for top-notch performance in the lab. Use the rotating head to adjust the height for taller users. Infinity Plan and Semi-Plan optics with a 30-year anti-fungal coating match quality with value within any clinic’s budget. With cool, long-life LED illumination, the i4 Infinity microscope is the perfect choice for durability, dependability, and superior imaging in the laboratory.
For the best value in a professional microscope with infinity optics, look no further than the I-4.
The I-4 Microscope features exceptional optical quality for top-notch performance in the lab. Infinity Semi-Plan or Plan optics with a 30-year anti-fungal coating (on ALL lenses) match quality with value within any lab's budget. The I-4 provides comfort, durability, dependability and superior imaging in a medical grade microscope. The reagent resistant finish will hold up well for years to come.
The Semi-Plan objectives on the I-4 are the best we have ever seen. Plan objectives are also available.
The I-4 is a tremendous value in an Infinity microscope.
I-4 Binocular Infinity Lab Microscope Features:
Head
- Binocular (Seidentopf)
- Diopter adjustment
- Inclined 30°, rotates full 360°
- 10X/18 WF Eyepieces (10X/20 Super WF High Point eyepieces available)
- Interpupillary distance range 55-75mm
Nosepiece
- Reverse quadruple nosepiece allow the objectives to roll back out of the way
- Multiple ball bearing mounted for years of trouble-free use
Objectives
- Infinity ∞ Semi-Plan or Plan objectives
- 4X, 10X, 40XR, 100XR (oil)
- 50X (oil) objective available optionally
- 30-year Anti-fungal coated optics
- Parfocal, parcentric, color-coded
Stage
- Mechanical stage (140mm X 140mm)
- Coaxial drive controls, metal rack & pinion
- Range of traverse: 73mm x 43mm
- Stage locking lever
- Slow-close hydraulic slide finger
Focus
- Coarse adjustment: range of 30mm
- Fine adjustment: graduation of 2μm
- Tension control knob
Illumination
- Movable Abbe condenser, NA 1.25
- Iris Diaphragm
- LED “daylight” long-life high intensity light source
- Variable light adjustment: 0-20W output
- Input 90-240V / 50-60Hz automatic switching
Accessories Included
- Blue, green, and yellow filters
- Dust cover
- Immersion oil
- Spare 2 amp fuse
- Manual and warranty card
Options
- Hard Cary Case
- Trinocular
- Dark field condenser
- Phase contrast
- Polarization
- 50x oil objective
Dimensions and Weight
- Height: 14.1” (352.5 mm)
- Length: 10.7” (267.5 mm)
- Width: 6.1” (152.5 mm)
- Weight: 16.0 lbs. (7.3 kg)
Warranty
- Lifetime on materials and workmanship
- One year on electronic components
Hard Carry Case
This custom case fits the Revelation lll, Infinity i4, Innovation, Z4 Zoom, and i4 Semen Evaluation microscopes, as well as many other brands. It has room for the microscope, cameras, and supplies, and no disassembly of the microscope is required. You'll just insert microscope, extend the handle, and roll into the field. This custom case features heavy-duty double hinges, 4 dual-action latches, waterproof seal, a pull-up handle, and smooth wheels for easy transport. Brochure HERE.
Blank Slide Kits
| KIT CONTENTS: | Regular Kit | SUPER Kit |
| Blank Glass Slides | 9 | 72 |
| Concavity Slides | 1 | 5 |
| Cover Glass | 100 | 200 |
| Lens Paper | 50 Sheets | 50 Sheets |
| Slide Holder Box | 1 | 1 |
| Eyedropper | 1 | 1 |
Order Accessories

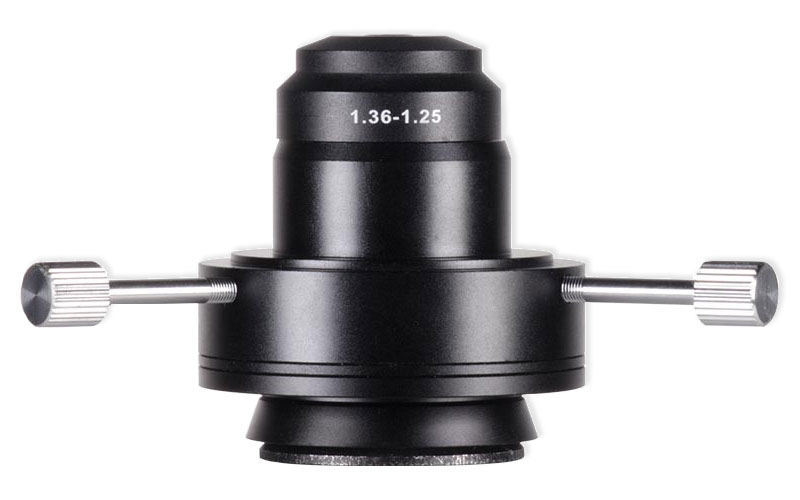

Oil Darkfield Condenser
Darkfield microscopy uses refracted light to make live, unstained specimens appear with bright contrast against a dark background. By blocking the center of the brightfield of light and not allowing direct rays to enter the objective, only the outer oblique rays of light strike the specimen.
This oil darkfield condenser works with objectives up to 40x.
With the "oil" version, a drop of immersion oil is used on top of the condenser (beneath the slide), creating a perfect, air-free light path from condenser to specimen.

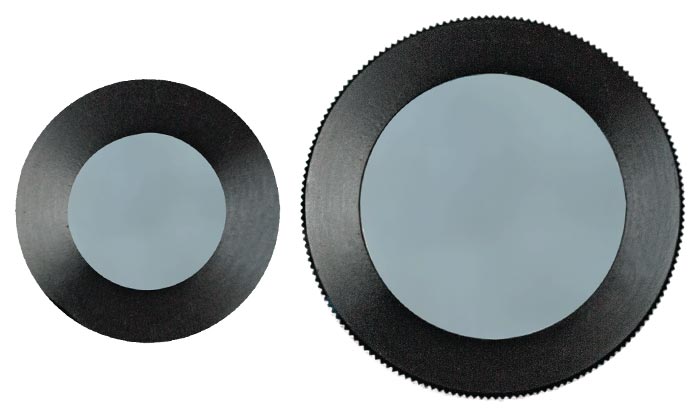

Simple Polarizer Kit
Only looking at crystals in urine or other fluids? The Simple Polarizing Kit for I4 microscope includes the upper Analyzer and lower Polarizer for urinalysis and other routine polarization applications.
When used properly, this two part filter set makes many things visible that under normal microscopy would remain unnoticed. From crystals in specimens to tensions in transparent structures such as glass and plastic, these adapters make a whole new realm of tests and procedures possible.
This low-cost Simple Polarizing Kit does not include the First Order Red Compensator Lens and is not suited for rheumatology applications.

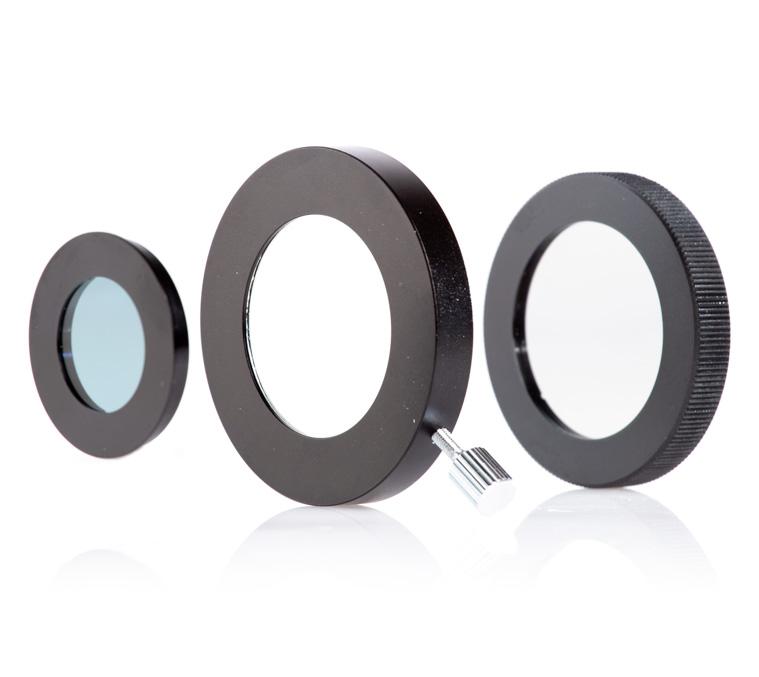

i4 Gout Polarizer Kit
The Gout Kit for the i4 Microscope includes the Simple Polarizing Kit plus the First Order Red Compensating Lens (whole wave plate), which allows easy identification of the specific crystals which cause arthritis.
Gout is a type of arthritis that can occur when uric acid builds up in blood and causes joint inflammation. Gout is caused by Sodium Urate Crystals, which are needle-like with sharp edges with strong birefringence.
Pseudo-gout (rheumatoid) is caused by Calcium Pyrophosphate Dehydrate Crystals (CPPD), which are small rods, squares, or rhomboids with weak birefringence.
Utilizing a Uric Acid control slide for reference, the user can easily determine which crystals are present in the synovial fluid by observing the color shift as the First Order Red Compensating Lens is rotated.
The Gout Kit is an economical and simple alternative to a fully polarizing microscope. When used with the i4 Infinity microscope the Gout Kit is a valuable tool for identifying crystals in synovial fluid.
- Simple to use
- Works with the I4 microscope
- Fraction of the cost of a fully polarizing Rheumatology microscope
- Includes Uric Acid control slide
*If only viewing urine crystals, the Simple Polarizing Kit on this page is the best option.
Neubauer Hemacytometer
A Neubauer Hemacytometer is a counting chamber used to determine sperm concentration.

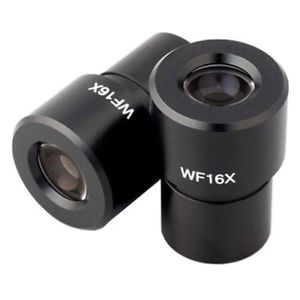

16x Eyepiece Pair
A pair of 16x Eyepieces will increase your magnification (over standard 10x) by 60%.

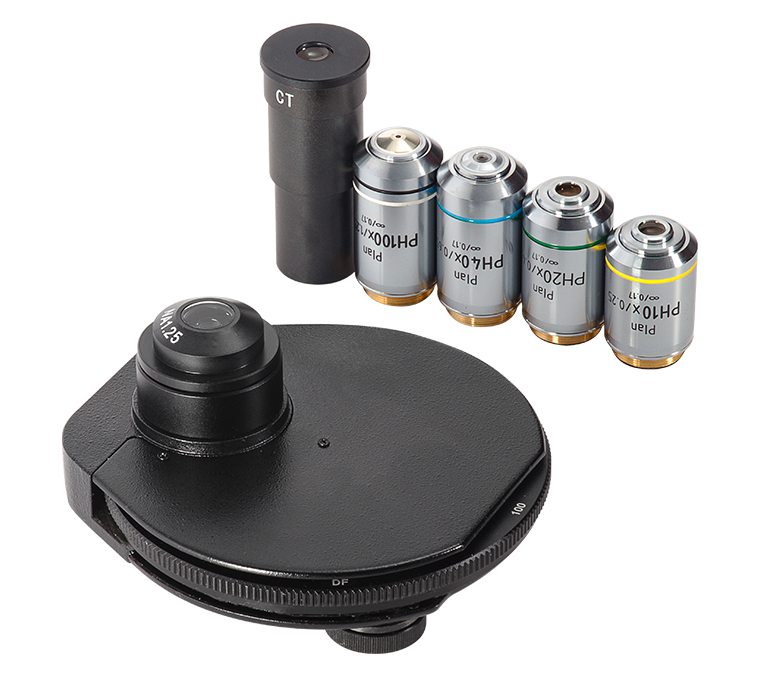

i4 Phase Contrast Upgrade Kit
Live, unstained, and semi-transparent specimens come into view easily with the Phase Contrast system. The path of transmitted light is altered to refract light through the specimen, creating contrast and detail on internal structures not visible in normal brightfield microscopy.
The i4 Phase Contrast Kit features 10x, 20x, 40x, and 100x Infinity PLAN Phase objectives for the highest resolution and a flat field of view. The turret condenser adjusts easily between phase, brightfield, and darkfield settings. The centering eyepiece allows the user to see the phase annulus rings for precise alignment.
The Darkfield setting works with the 10x, 20x, and 40x objectives.
